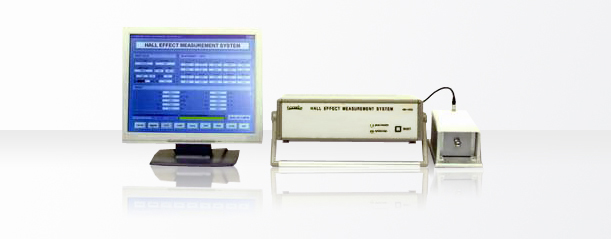

Ecopia HMS-3000 Hall Measurement System

Van der Pauw Ecopia HMS-3000 Hall Measurement System



Van der Pauw Ecopia HMS-3000 Hall Measurement System

Very Competitive Price        Compact Desktop Design        Easy-To-Use





The HMS-3000 Hall Measurement System is a complete system for measuring the resistivity, carrier concentration, and mobility of semiconductors. The HMS-3000 includes software with I-V curve capability for checking the ohmic integrity of the user made sample contacts. The systems can be used to characterize various materials including semiconductors and compound semiconductors (N Type & P Type) such as Si, Ge, SiGe, SiC, GaAs, InGaAs, InP, GaN, ZnO, TCOs, metals, etc., at both 300K and 77K (room temperature and liquid nitrogen temperature).



Characteristics



  • Compact Desktop Model - Permanent magnets and a small circuit system are used instead of an electric magnet system and a bulky constant current source, producing a compact, desktop design.

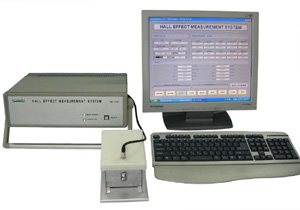

Van der Pauw Ecopia HMS-3000 Hall Measurement System

Main Body (HMS-3000)



    Simplicity and Accuracy

  • 5 Stage current ranges reduce the allowance error to a minimum.

    Simple Operation - Speedy Data Results
  • Data is input by a simple operation providing bulk/sheet carrier concentration, mobility, Hall coefficient, bulk resistivity, conductivity, magnetoresistrance, and alpha (Vertical/Horizontal ratio of resistance).



PCB Sample Holder (6mmx6mm, 20mmx20mm)
Magnetic flux density input system (0.51T, 1.0T)

PCB Sample Holder
(6mmx6mm, 20mmx20mm)

Magnetic flux density
input system
0.51T, 1.0T



The SPCB-1 Spring Clip Board does not require the usual sample bonding process invoving the use of small wires.



The Spring Clip Board is for use with the 0.51 Tesla magnet kit (not the 1.0T) and it has spring loaded clips and spring loaded tips to make contact without using bonding wires. (When using the Spring Clip Board, usually the contacts must still be annealed with a conductive material such as indium to insure good probe contact)

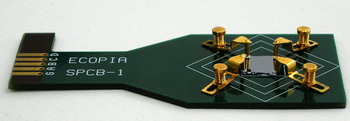

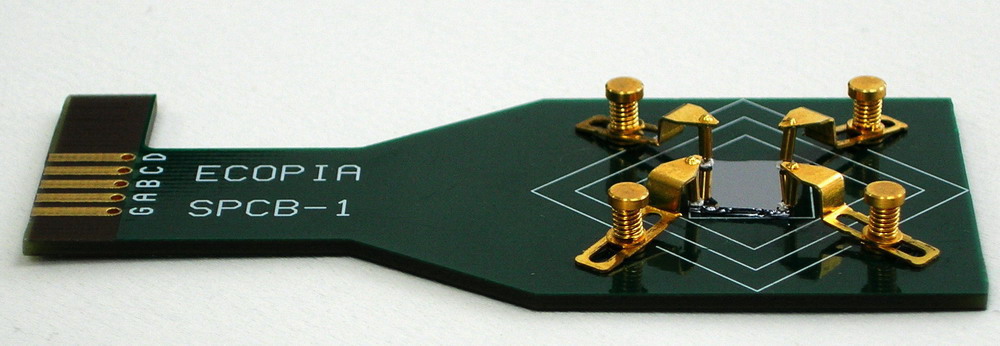

SPCB-1 Spring Clip Board

(click the Spring Clip Board photo to see a larger image)

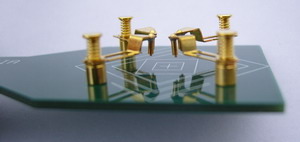

SPCB-2 Spring Clip Board

(click the SPCB-2 Spring Clip Board photo to see a larger image)

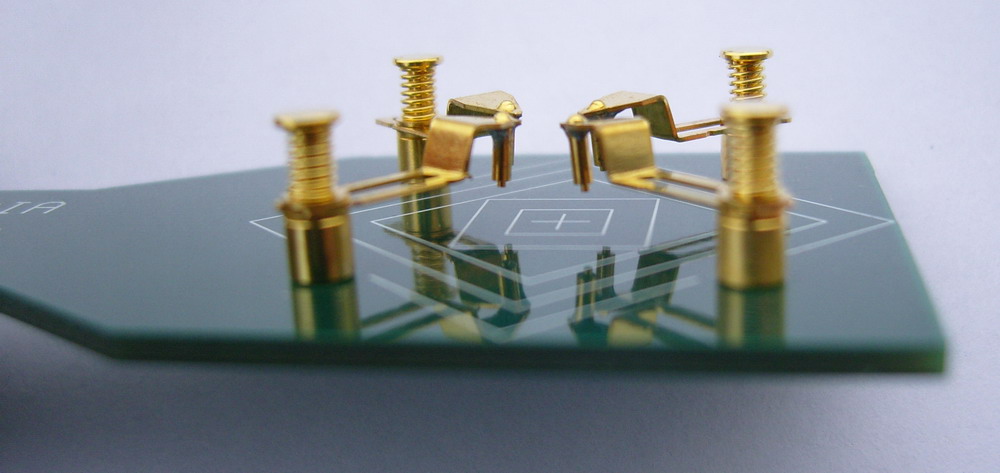

The SPCB-2 Spring Clip Board is for mounting thicker samples that are from 2mm up to 4.5mm in thickness.



Product Composition



  • Constant current source supply system
  • Sample measurement case
  • Permanent magnet set
  • Hall Effect Measurement Program (Windows)
  • Funnel for liquid nitrogen


Features



  • Low and high resistivity measurement capability, bulk and sheet carrier concentration and mobility, Hall coefficient in semiconductors
  • DC measurement modes
  • van der Pauw and Hall Bar measurements
  • Board system (room temperature or 77K)



Specifications:



  • General
    • Maximum sample size (Small board) - 6mm x 6mm, (Large Board/Spring Clip Board) - 20mm x 20mm.
    • Measurement Temperature: 300K (room temperature), 77K (Liquid Nitrogen)
    • Cool-down time: 10sec.
    • Measurement Material: All semiconductors including Si, SiGe, SiC, GaAs, InGaAs, InP, GaN (N Type & P Type can be measured).
          Data input of depth enables comprehensive measurement of the whole material.
    • Resistivity Range of HMS-3000: 10-4 to 107 (Ohms-cm)
    • Magnet: Permanent magnet (diameter: 50mm)
    • Magnet Flux Density: 0.51 Tesla nominal +/-1% of marked value (Optional 1 Tesla sample kit for 300K testing only)
    • Stability: 2% over 1 years
    • Uniformity: +/- 1% over 20mm diameter from center
    • Pole Gap: 26 mm
    • Hall voltage range: 1uV to 2000mV
    • Mobility: (cm2/Volt-sec) 1 ~ 107 (including low temperature)
    • Density (cm-3): 107 ~ 1021
    • Standard field strength 0.51 Tesla, Optional field strengths 0.27T, 0.31T, 0.37T, 1.0 Tesla (300K testing only).
    • Size (W � D � H): 320 x 300 x 105 mm (Constant Current Supply System)
    • Weight: 7.7kg (without shipping packaging)
    • Packed in overseas wooden crate, Weight: 18.5 Kg, Dimensions: 23" x 18" x 19"



  • Current source:
    • Range: (HMS-3000) 1nA-20mA
    • Compliance: 12V



  • Voltage measurements:
    • Input impedance: 2x107
    • Input voltage range: +/-12V
    • Sample input: Sample board
    • Contact switching: Mechanical Relay

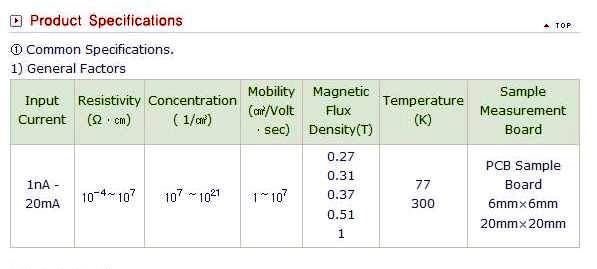

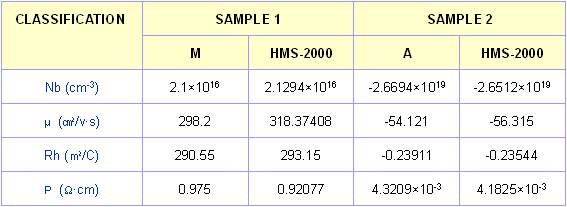

Product Specifications

Classification



0.51 Tesla (Standard)
0.51 Tesla (Standard)
0.51 Tesla (Standard)

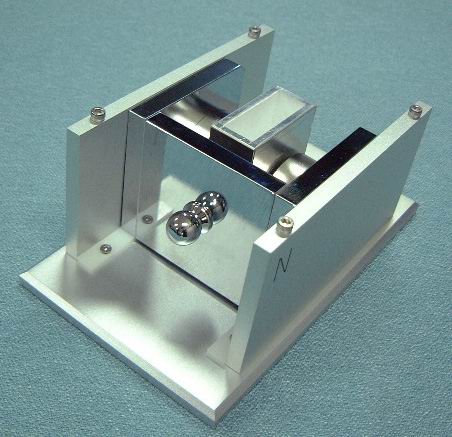

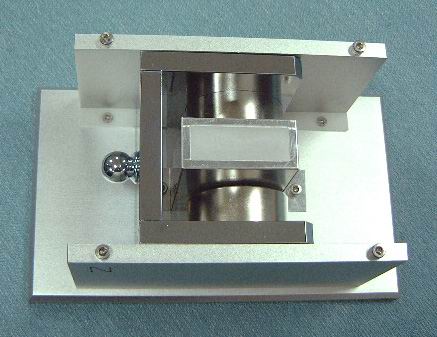

0.51T Sample Holder with lid and sample board removed, showing magnet set and LN2 reservoir.
Click on either photo to see a larger image.



1.0 Tesla (Optional)
1.0 Tesla (Optional)
1.0 Tesla (Optional)

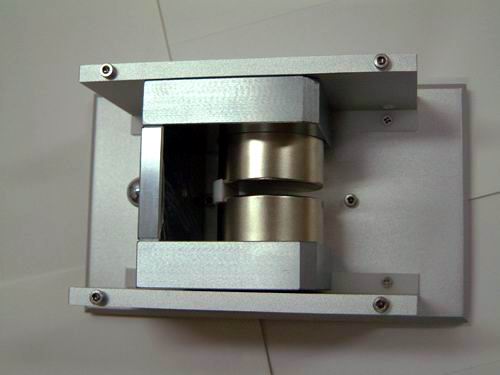

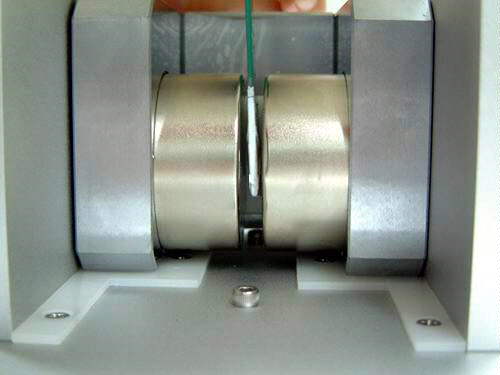

Ecopia offers a 1.0 Tesla permanent magnet sample holder kit with lid for use at room temperature only.
Click on either photo to see a larger image.
HT55T 300<SUP>o</SUP>C Heated Stage Option

Ecopia offers the 300oC variable temperature HT55T Heated Stage Sample Kit with two 0.51T magnets and the Easy-Slide ball bearing stage.

Download the brochure for more information (206K PDF file).



Sample boards for bonding/testing samples



Sample boards for bonding/testing samples:



  1. For use with <6mm x 6mm samples (5 pcs included with HMS system)



  2. For use with <20mm x 20mm samples (5 pcs included with HMS system)



  3. For use with socketed IC's (not normally included, but available upon request)



Click image to see a descriptive PDF file

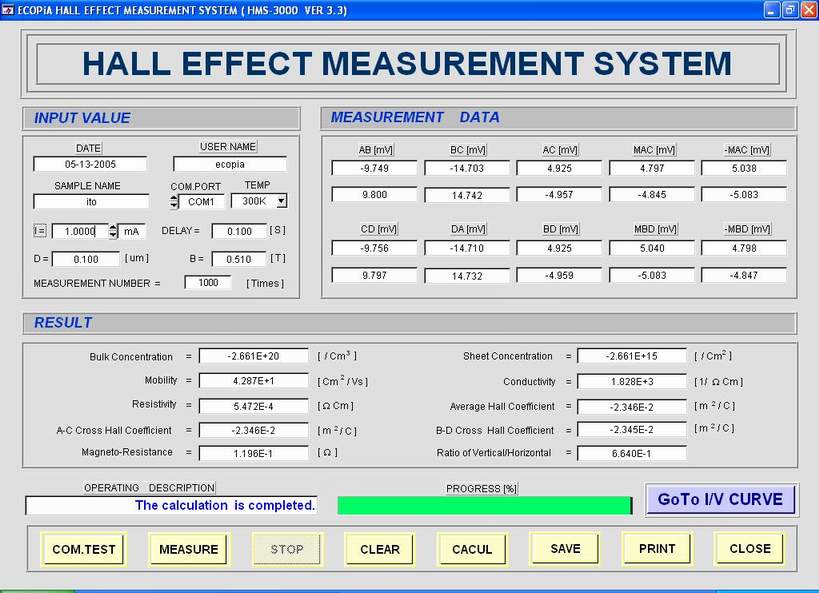

Screen-shot showing HMS-3000 Software

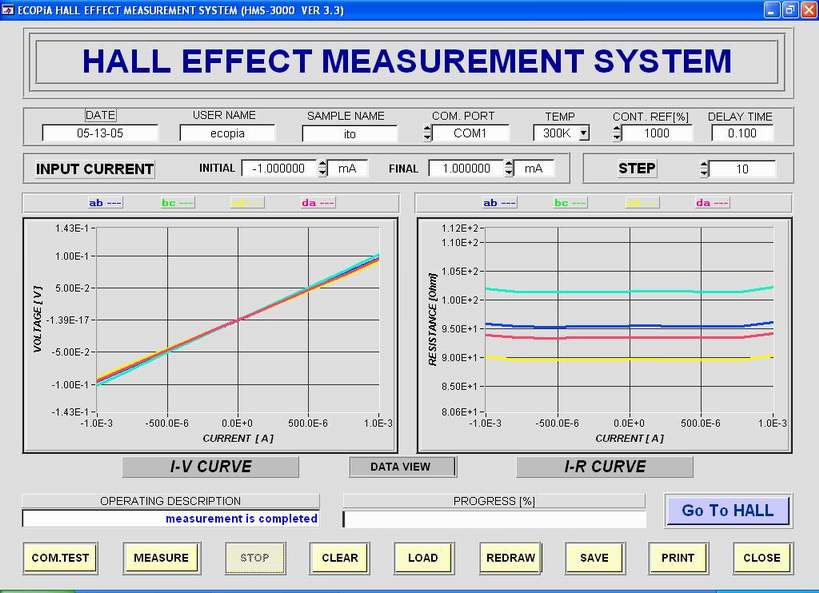

Screen-shot showing IV Curve software
Screen-shot showing HMS-3000 Software
Click photo to see a larger image
Screen-shot showing IV Curve software
Click photo to see a larger image





Ecopia HMS-3000 Hall Measurement System

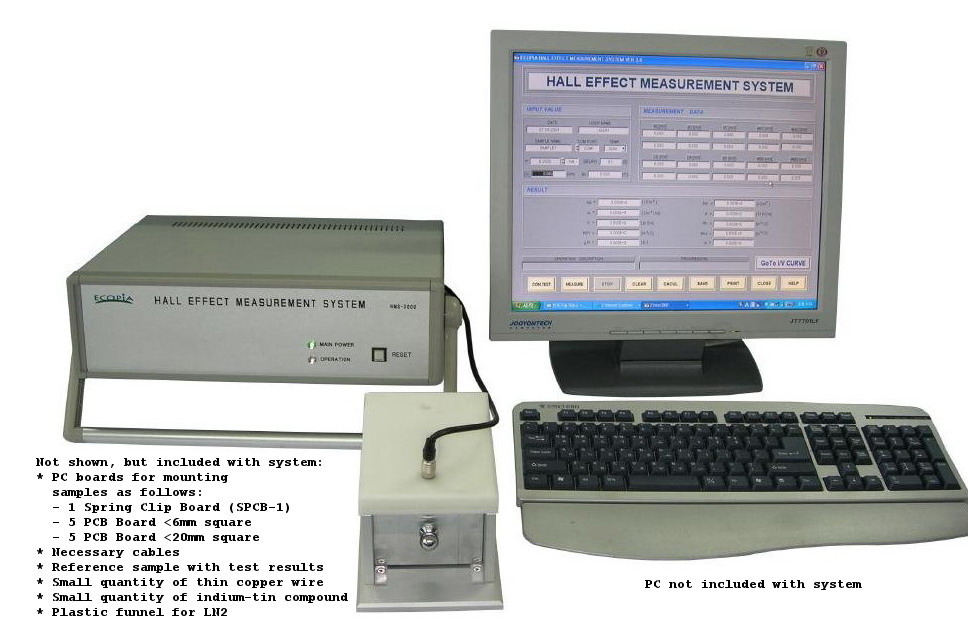

Another image of the HMS-3000 which lists the included materials


Click photo to see a larger image




White Papers that mention the use of the HMS-3000: The following papers are copyrighted materials that you can find on the web by searching for the name using google. Include the quotation marks in your google search. Once you have purchased the PDF document, you can search in the documment for "HMS" to find the reference:

"Preparation and Properties of Multiwalled Carbon Nanotube/Polycaprolactone Nanocomposites"

"Structure, optical, and electrical properties of indium tin oxide thin films prepared by sputtering at room temperature and annealed..."

"Sintering behaviors and electrical properties of transparent conducting..."





See Also:

HMS-5000



The HMS-5000 Hall Effect Measurement System has automated magnet movement, variable temperature capability, and powerful analysis software.



See Details
