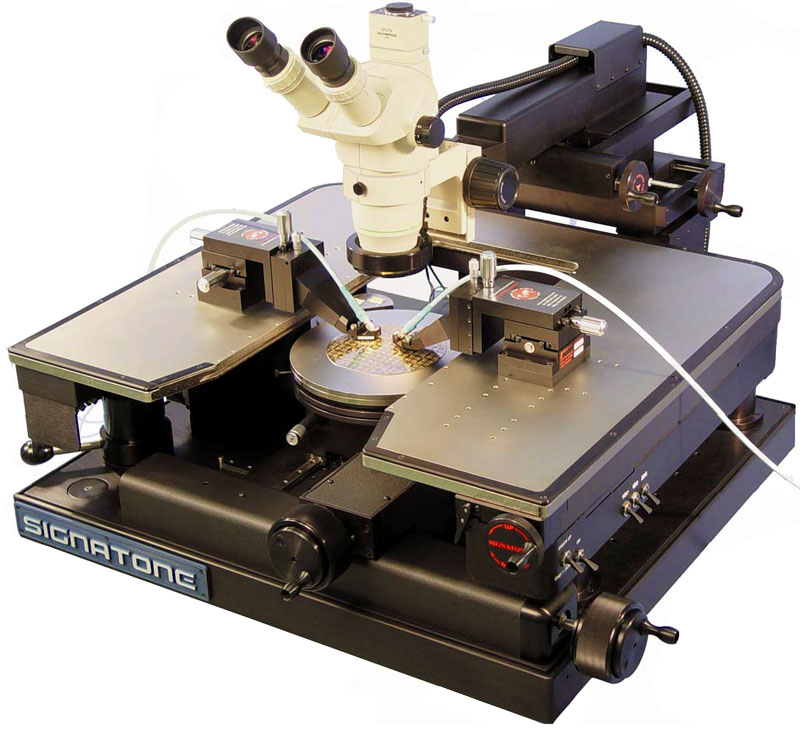

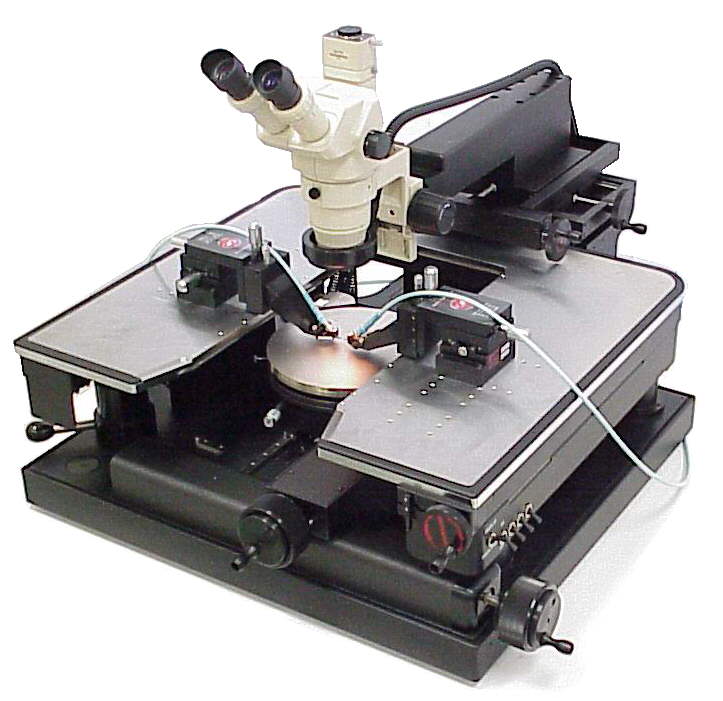

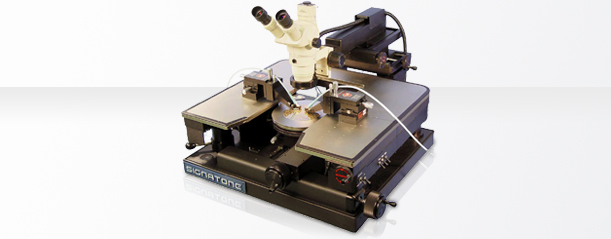

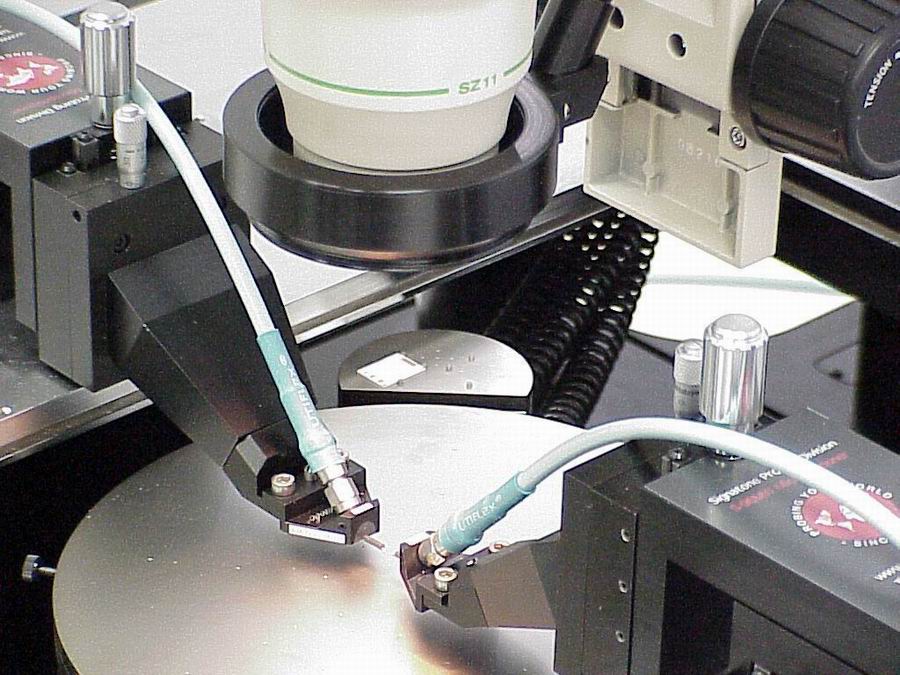

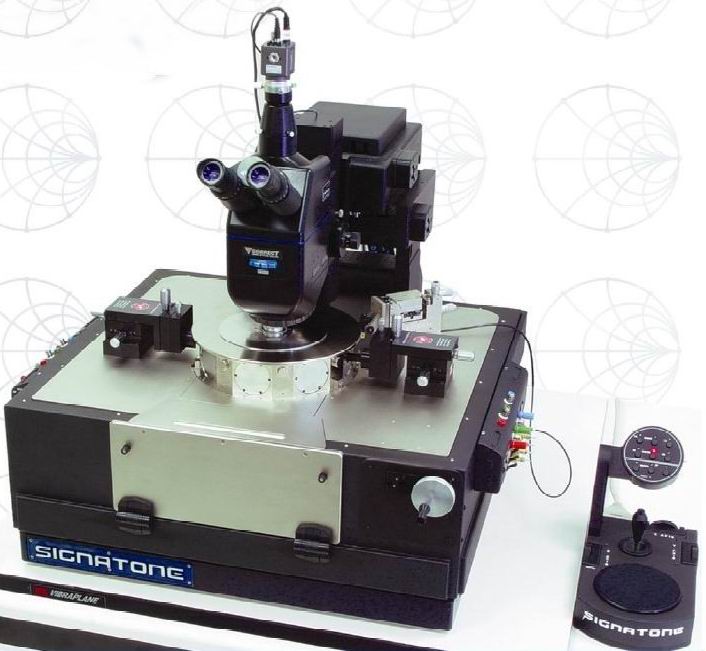

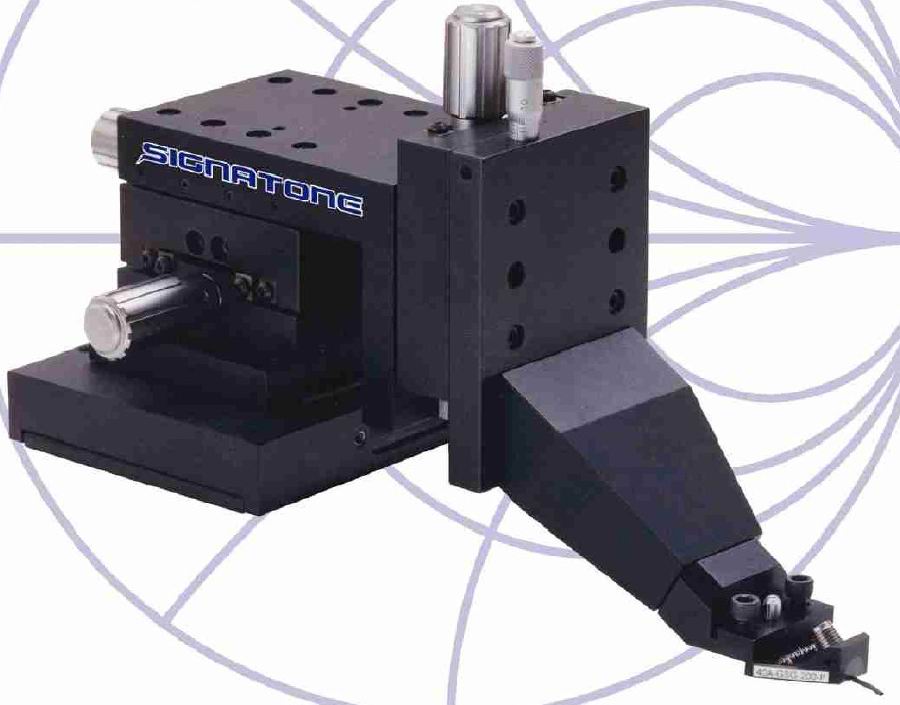

Manual and Semiautomatic RF Probing Systems and Accessories WaveLink RF Probe Stations click image to see a larger photo The WL-210 manual RF Probe Station CLICK HERE for the WaveLink 210 Brochure [638K PDF file wl210.pdf] Calibration chuck offers 3 substrate sites with individual vacuum control, and theta and Z adjustment independent of the main chuck. The WL-250 has joystick/thumbwheel remote dial control, programmable, and includes the local chamber. CLICK HERE for the WaveLink 250 Brochure [249K PDF file wl250.pdf] WL250 with Local Chamber Click image to see larger photo WaveLink Independent Calibration Chuck click image to see a larger photo Semiauto / Manual RF Probers Powerful Windows Navigation Software Easy Interface to Network Analyzers Cal Substrates Mount on an independent Cal-Chuck Automatic Calibration Routines Full Range of Calibration Substrates Easy Routing of RF Cables Non-Resonant Chuck for measurements below 325 GHz 2" of platen Z travel Local Chamber Option Excellent System Stability / Solid Platen Design Planerizable RF Micropositioners N-S-E-W orientations Magnetic, Vacuum, or Mechanical mounting 1" X-Y-Z Movements Captured Bearings - Prevent Accidents Durable / Economical Microwave Probes Economical Microwave Cables 2" of platen Z travel WaveLink 1160 RF Probe Station The WL-1160 probe stations are simple, rugged, and economically priced systems that are specially configured for RF/Microwave probing applications. The large platen is well suited to the large microwave type micropositioners. The independent calibration chuck will accept one of several calibration substrates. Wafer chucks are available in 4", 6" and 8". The systems can be fitted with either high powered optics for probing small geometries or lower powered optics for probing larger geometries. The WL-1160 will accept microwave micropositioners with either magnetic, vacuum, or mechanically mounted bases. The S-1160 series probe stations have a proven track record for reliability and functionality at an attractive price. Click Here to Download WL-1160 RF Probe Station Brochure [497K PDF FILE] S-96MW Micropositioner S-96MW Microwave Micropositioner The S-96MW micropositioner is designed for RF probing. The positioner has one inch movements in all axes and captured cross-roller bearings to prevent accidentally moving the tip if bumped. An integral co-planarity adjustment provides for adjusting G-S-G tip planarity. S-96MW positioners are available with head configurations allowing the microwave head to be introduced from the front, rear, left or right side. The S-96MW is the most stable RF positioner available. (click on photo to see a larger image.) Download the product brochure for the S-96MW (228K PDF file) DC Probes for use with Microwave Probing Systems Click here to download the SCA_probe.pdf [68K] PDF brochure Coaxial Probes are designed for low-level signal probing to less than 10fA. The probe's single unit design is especially desirable for the best possible electrical characteristics The Coaxial Probe is also offered with optional Ground Plane, Kelvin and resister series /parallel configurations. Contact factory for further specifications available for your particular application. CONSTRUCTION The Probes are constructed of microwave-quality components. The 50 Ohm semi-rigid cable consists of 8 mil tungsten wire forming the inner conductor and probe point, with isolation from the gold plated copper shield being achieved through the utilization a Teflon dielectric. The probe contact protrudes from the shielding by .150" to maintain low-level signal noise to the probe. The connector is an industry standard SSMC, mounted in a brass mounting shank where it is attached to the coax. Microwave Probes and Accessories Signatone offers a wide range of RF probes, calibration substrates, and microwave probe cards.

BRIDGE Technology is an authorized representative of Lucas/Signatone Corporation

To request further information please call Bridge Technology at (480) 988-2256 or send e-mail to Larry Bridge at: sales@bridgetec.com
