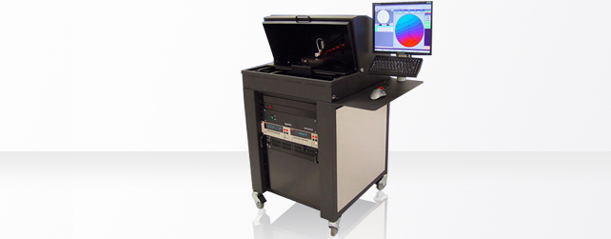

Lucas Labs QuadPro 300 mm Thin Film Resistivity Measurement System

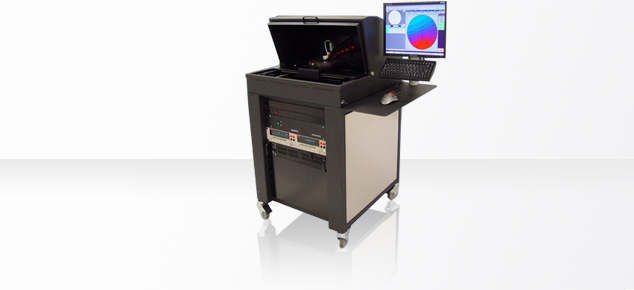

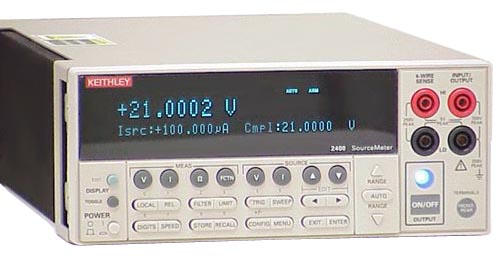

The Signatone QuadPro Process Development Resistivity System is available in both manual and automatic 8" and 12" systems. The manual system includes a ball bearing stage and can be upgraded at a later time to add auto-stepping capability. The automatic systems are motorized and can automatically step through 9, 25, 49, or 121 test points on wafers of size 100 mm, 125 mm, 150 mm, 200 mm, or 300mm. The systems use four point probes with a state of the art current source and electronic DVM combined with a dual configuration test procedure and test integration to obtain an accuracy of better than 1% over the resistivity range from 1 milli-ohm to 2 Meg-ohms per square. The accuracy and calibration are NIST traceable. The automatic system is fully integrated and operates under Windows 95/98 with a Pentium based controller. The friendly software allows one click single point measurements or one click automatic wafer mapping with the average and standard deviation displayed and either 2D or 3D maps of the results. A live display of the current test point location and result is available. If any point is suspect, it may be re-tested by clicking on the table entry, after retest, and the system allows a choice of acceptance of the new test data. The results are stored in ASCII files and may be uploaded to a host system for trend analysis through an optional Local Area Network (LAN). Other options include a light shield and the addition of a thermal chuck and temperature control and software for the measurement of the Temperature Coefficient of Resistance (TCR). Also, a wafer handler may be added for fully automatic operation.

Click here for a printable PDF file (621K) regarding the QuadPro Resistivity Measurement Systems
Easy to Use - From the Original Resistivity Company Flexible - Software & Hardware LAN Compatible Temperature Control from Ambient - +125°C	9, 25, 49 & 121 Data Point Options, With 2D & 3D Plots Resistance & Resistivity or Thickness Measurements Measures Temperature Coefficient of Resistance Optional High Temperature Range of Ambient up to +400° C

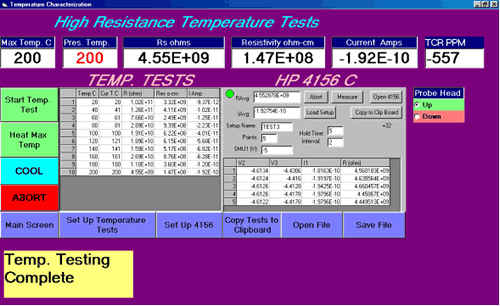

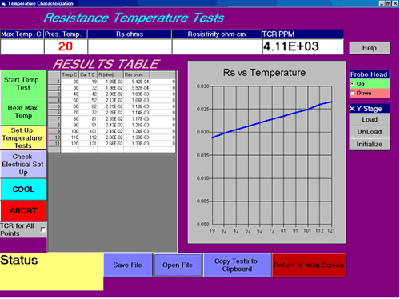

Menu Commands: Set Wafer Size Select # of Points Set Edge Exclusion Optional Re-Test Points Save Results & Plot 2D or 3D Map Save Data for Trend Analysis Up-Load to Host Optional - Set/Read Temperature Specifications: Sample Size: 100mm, 125mm, 150mm, 200mm, & 300mm Resistance Standard Range: 1 Milli-ohm to 2Meg ohms per square Testing Procedure: Dual Configuration & Integration Accuracy: Better than 1% for the Standard Range Calibration: NIST Traceable Certificate Output: 2D Color Map, 3D Contour Map, Diameter Plot Automatically Displays: Average & Standard Deviation Options: Calculate & Plot film thickness or resistivity LAN Interface to upload data files ( ASCII ) to a host system Temperature Control for Temperature Coefficient of Resistance (TCR) measurement. Auto Wafer Handling System	Click on photo to see a larger image.
