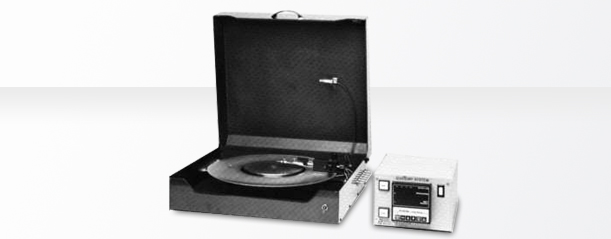

Signatone Thermal Probing Systems

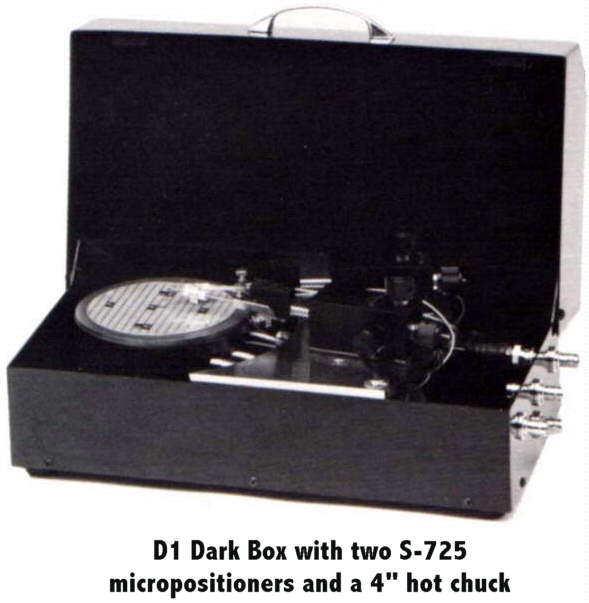

	Signatone manufactures thermal chucks (hot and cold) for a wide range of applications: Prober mounted or stand-alone hot chucks for characterizing wafers and packaged devices at temperatures ranging up to 300oC Very high temperature hot chuck systems for up to 600oC. (see below for data) Prober mounted or stand-alone hot/cold chuck systems for temperature ranges from -65oC to 200oC -15oC to 70oC Stable Temperature Hot/Cold Fluid Chuck Systems for liquid crystal hot spot detection Stand-alone dark-box systems for engineering applications C/V plotter hot chucks systems for production and engineering Ultra high temp (600oC) systems [40k PDF file] Triaxial hot chucks for low current probing Large area hot chucks for flat panel probing

---

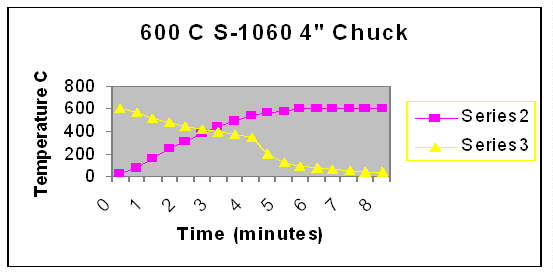

Signatone S-1060R 4" Hot Chuck Data Sheet (600^oC)

Temperature Range..................Ambient to 600oC Temperature Accuracy..................+/- 1oC Temperature Resolution.........1oC Temperature Uniformity......................+/- 1oC Surface Flatness.................005" TIR across Temp Range Surface/Base Expansion..........Typical 0.010" across Temp Range Surface to Ground Isolation...106 ohms. ( 1014 ohms available with triax top ) Surface to Ground Capacitance...................<300pF Electrical Noise Floor....................Approx. 10 nA Chuck Actual Diameter........................4.5" Chuck Height Q chuck......................1.25"

Controller Information Model 1060R

Power	Width	Height	Depth
110V/20A	19" (483 mm)	7" (178 mm)	20" (508 mm)
220V/10A	19" (483 mm)	7" (178 mm)	20" (508 mm)

Note: This system mounts in a standard 19" rack.

Note: Cooling from 600^oC to 350^oC is by gas, from 350^oC to ambient by liquid.
