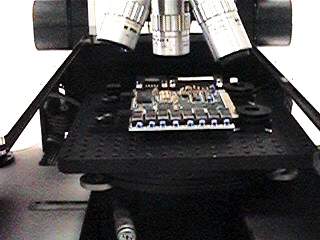

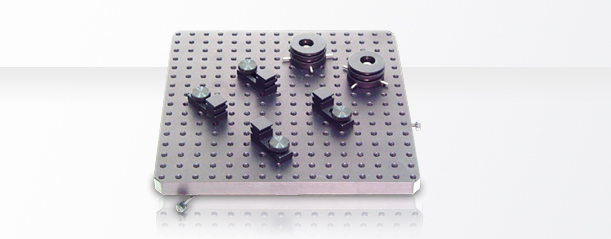

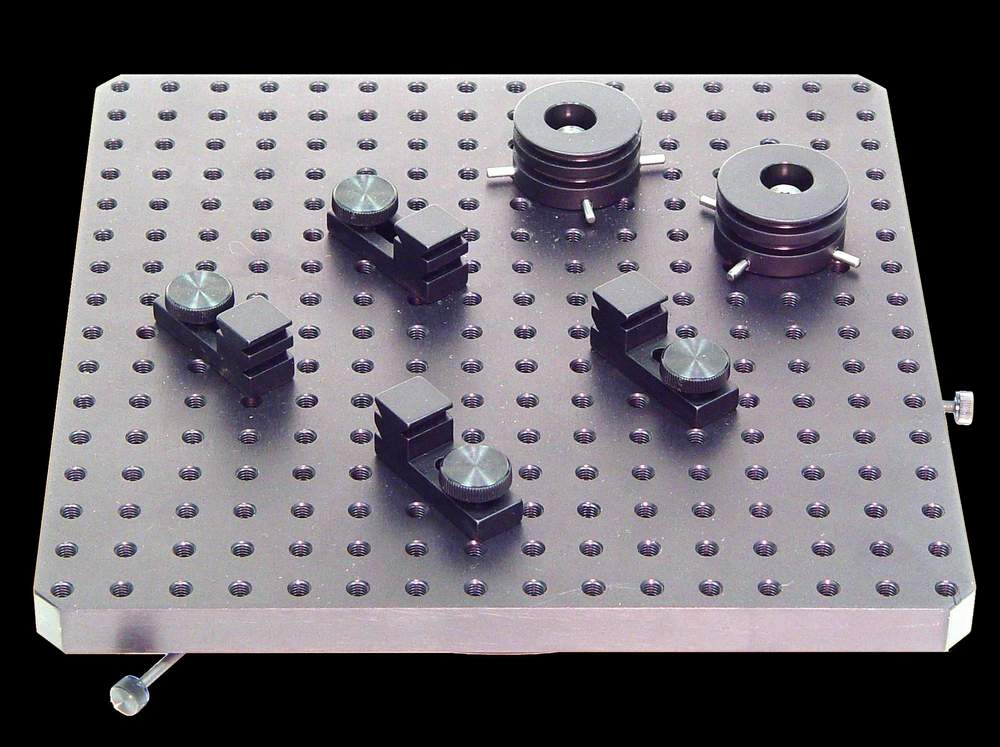

Signatone Board Mount Chuck Signatone's Board Mount Chuck is ideal for mounting small PC boards and odd shaped devices that can not be held down by vacuum. The unit is built around an 8" square aluminum plate with a grid of 10-32" tapped holes on 0.5" centers. Four cams can be adjusted to firmly hold a wide range of boards. Click Here to see a close up photo of the board mount chuck.

BRIDGE Technology is an authorized representative of Lucas/Signatone Corporation

To Probe Stations Page.

To request further information please call Bridge Technology at (480) 988-2256 or send e-mail to Larry Bridge at: sales@bridgetec.com
