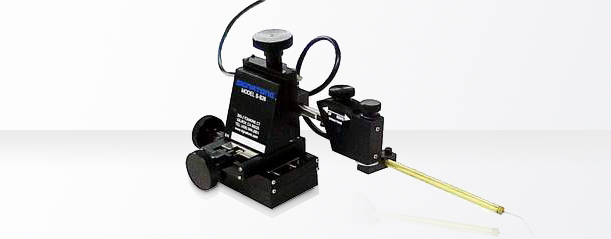

Triaxial Probe Tip Holders Signatone S-926PRM Micropositioner with long shank Triaxial Probe Tip Holder Example: TRX-L-E-60-6 = Triaxial probe tip holder with 4" long shank, E type probe tip holding mechanism, 60" triax cable which terminates with a triax connector, for use with an S-926 pivoting head micropositioner. Shank Type "TRX" - Triaxial Probe Tip Holder. Noise Floor: ± 2fA when used with Triaxial Chuck and in electrically shielded environment Shank Length "S" - Short shank - 2.5 inches "L" - Long shank - 4 inches Tip Holder Type "E" - Horizontal end clip "S" - Screw locking end clip Cable Length "24" inch Triaxial cable "36" inch Triaxial cable "60" inch Triaxial cable Micropositioner Mount "6" - Mount for existing S-926P## "5" - Mount for existing S-725P## "C" - Mount for existing Computer Aided Probes (CAP-946) "I" - Mount for existing S-996 In-line micropositioner Back to the standard DC and coax type probe tip holder page
